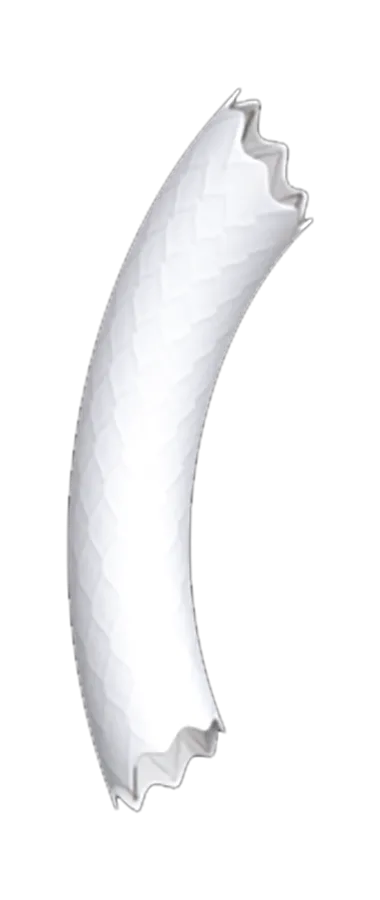

Aortic Stent Graft System
The BeGraft aortic stent graft system combines low foreshortening with a high radial force.
The Cobalt-Chromium (CoCr) stent is covered with a ~200 ePTFE tubing.
Optimized lesion care
through wide range of diameters ( 12 - 24 mm ) and lengths ( 19 - 59 mm )
High conformability and stability
through the use of CoCr alloy with outstanding flexibility and radial force
Easily Customizable through post-dilation options
The Cobalt-Chromium (CoCr) stent is covered with a ~200 ePTFE tubing.
Optimized lesion care
through wide range of diameters ( 12 - 24 mm ) and lengths ( 19 - 59 mm )
High conformability and stability
through the use of CoCr alloy with outstanding flexibility and radial force
Easily Customizable through post-dilation options

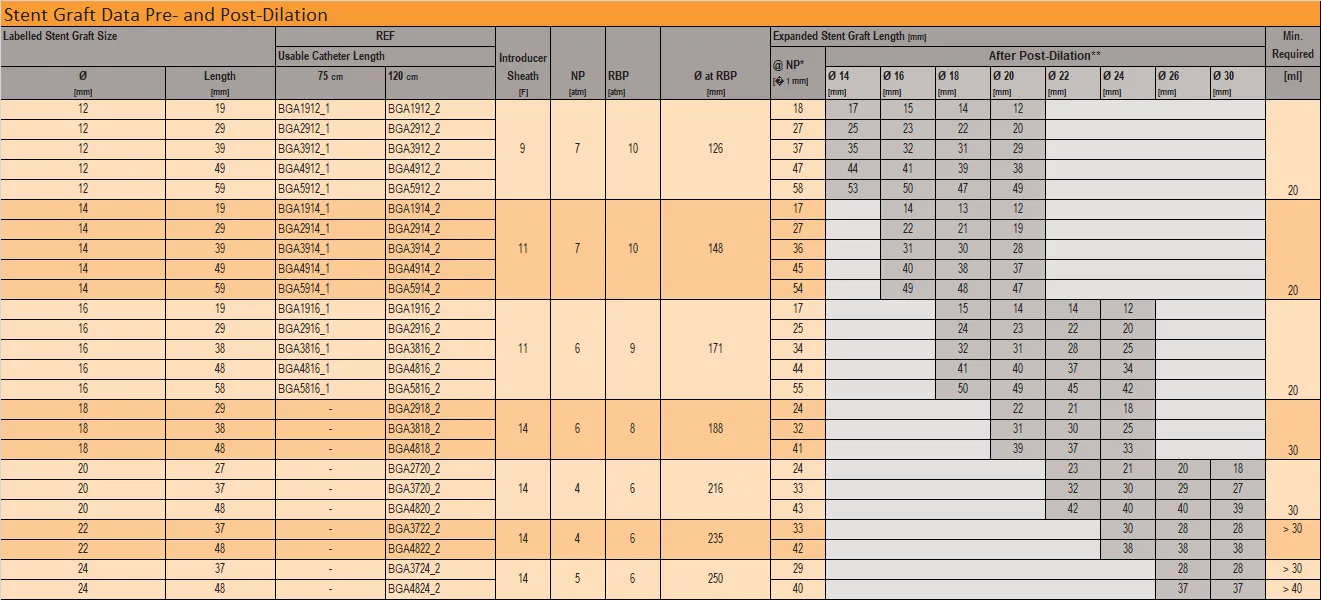

Product specifications
| Stent Material | Cobalt-Chromium (CoCr - L605) |
| Graft Material | ePTFE tubing (~200 ) |
| Stent Graft Design | – Open cell design – ePTFE covered |
| Delivery System | – Pre-mounted on the balloon – 0.035” Guide Wire (OTW) |
| Balloon Markers | 2 (Platinum/Iridium) |
| Catheter Shaft Length | 75 and 120 cm |
| At nominal pressure | Max. diameter** | |
| Stent Diameter | 12, 14 mm (SV) | 20 mm |
| 16, 18 mm (MV) | 24 mm | |
| 20, 22, 24 mm (LV) | 30 mm | |
| Nominal Pressure | Ø 12, 14 mm | 7 bar |
| Ø 16, 18 mm | 6 bar | |
| Ø 20, 22 mm | 4 bar | |
| Ø 24 mm | 5 bar | |
| Rated Burst Pressure | Ø 12, 14 mm | 10 bar |
| Ø 16, 18 mm | 9 bar | |
| Ø 20, 22 mm | 8 bar | |
| Ø 24 mm | 6 bar | |
| Introducer Sheath Compatibility | Ø 12 mm | 9 F |
| Ø 14, 16 mm | 11 F | |
| Ø 18, 20, 22, 24 mm | 14 F | |
| Labelled Stent Graft Length | 19, 29, 39, 49, 59 mm (SV) 19, 29, 38, 48, 58 mm (MV) 27, 37, 48 mm (LV) |
|
| Shelf Life | Max. 3 years |
SV= Small Vessel, MV= Medium Vessel, LV= Large Vessel
** Max. diameter after post-dilation with an appropriate balloon-catheter
Indications*
The BeGraft Aortic Stent Graft System is indicated for:
– the implantation in the native and / or recurrent coarctation of the aorta
(CoA) on adolescent or adult patients
– restoring and improving the patency of the iliac arteries
