Begraft Peripheral
Begraft Peripheral | SERVE TIP VE TEKNOLOJİ TİC. A.Ş.

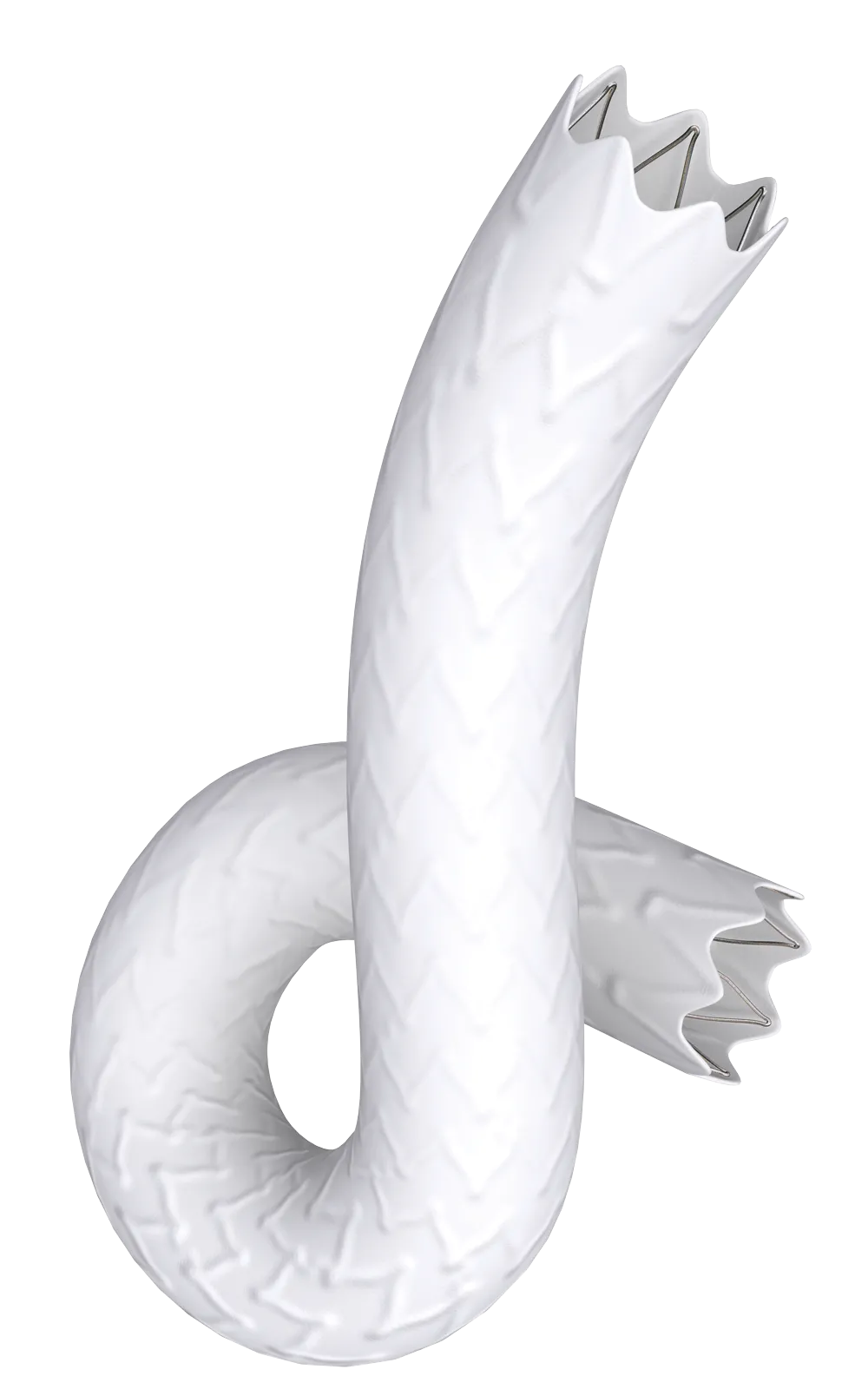

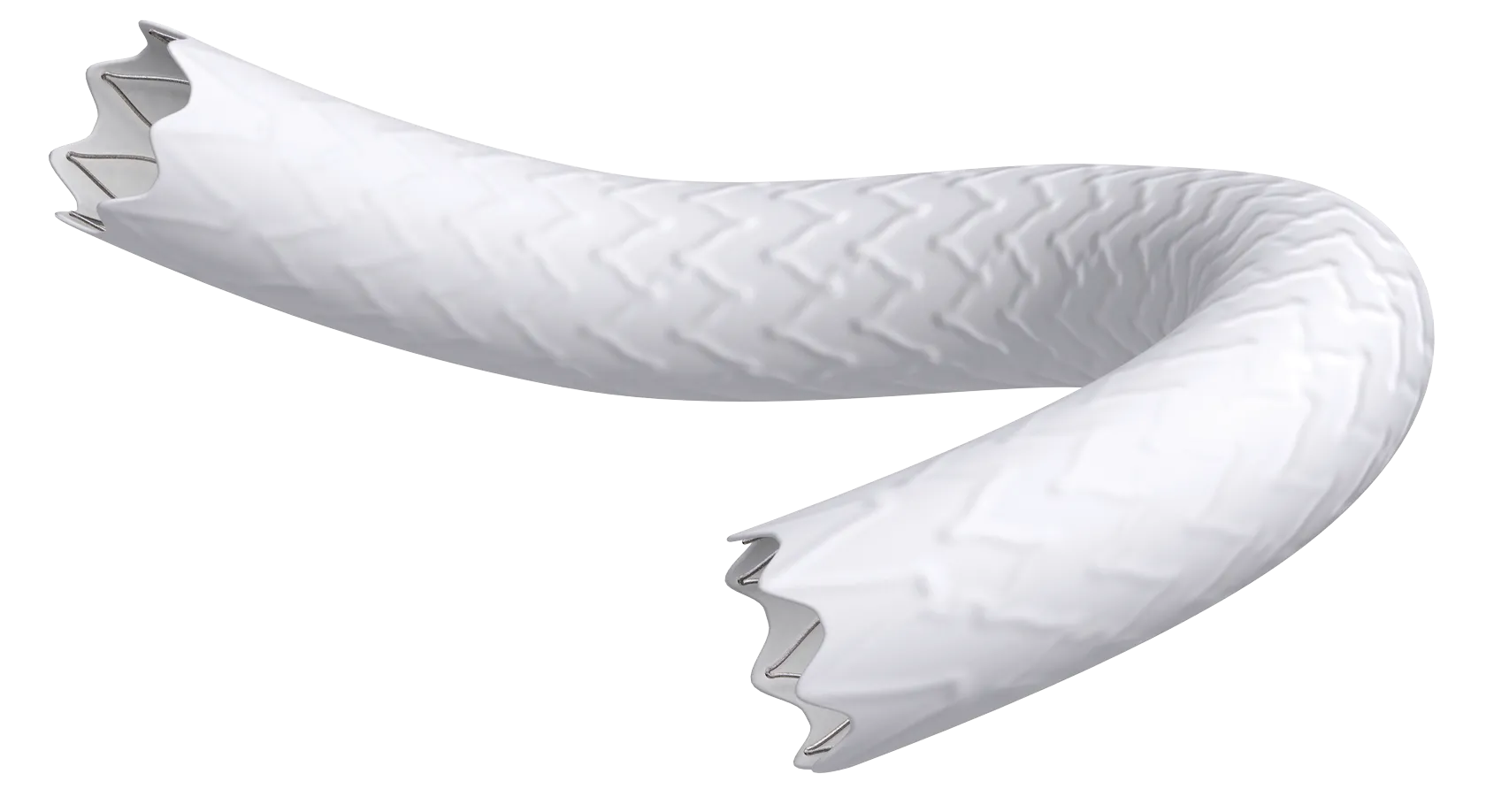

This peripheral stent graft system excels with a high radial force whilst maintaining extraordinary flexibility and low profile. The cobalt-chrome stent platform is covered with a micro-porous ePTFE membrane.
Less trauma, faster procedures through low profile ( 6 F compatibility up to 8 mm )
Outstanding lesion access through exceptional flexibilty
Predictable stent behaviour through low foreshortening & high radial force
Less trauma, faster procedures through low profile ( 6 F compatibility up to 8 mm )
Outstanding lesion access through exceptional flexibilty
Predictable stent behaviour through low foreshortening & high radial force
Your Specification
| Graft Material | Micro-porous ePTFE tubing (a ± 25µm) | |||
| Stent Material (Composition) | CoCr (L605) | |||
| Stent Graft Design | Single Stent | |||
| Strut Dimensions (Width x Thickness) | 0.135 x 0.145 mm (SV) 0.145 x 0.145 mm (MV) 0.165 x 0.145 mm (LV) | |||
| Delivery System |
OTW | |||
| Introducer Sheath Compatibility | 6 F up to Ø 8 x 57 mm 7 F |
|||
| Guide Wire | 0.035” | |||
| Shaft Size | 5 F | |||
| Balloon Marker Material | Platinum / Iridium | |||
| Nominal Pressure | 9 bar Ø 5.0 - 7.0 mm 8 bar Ø 8.0 - 10.0 mm |
|||
| Rated Burst Pressure | 13 bar Ø 5.0 - 7.0 mm 12 bar Ø 8.0 - 10.0 mm |
|||
| Catheter Shaft Length | 75 cm and 120 cm | |||

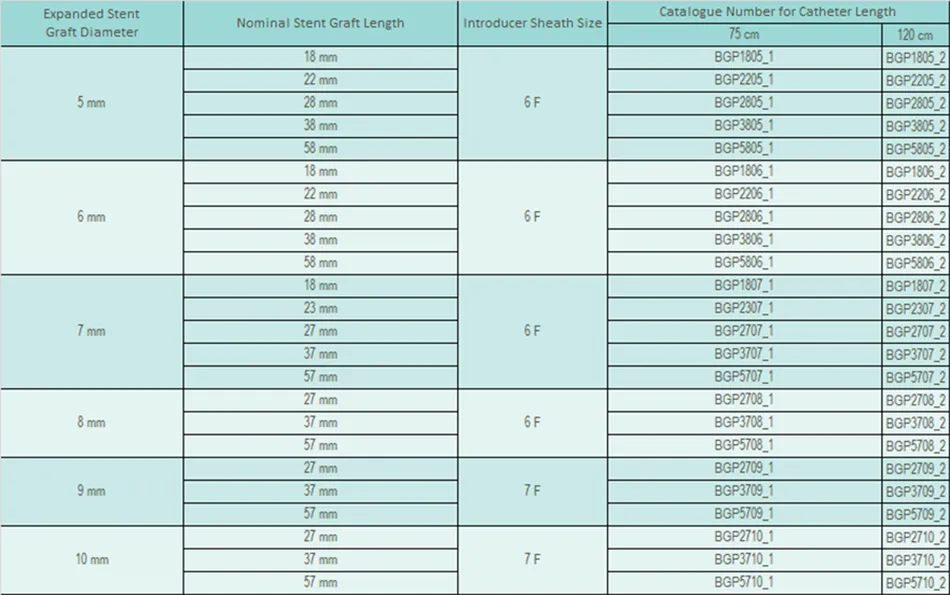

| Expanded Stent Graft Diameter | 5.0, 6.0 mm (SV) 7.0, 8.0 mm (MV) 9.0, 10.0 mm (LV) |
|||
| Nominal Stent Graft Length | 18, 22, 28, 38, 58 mm (SV) - 18, 23, 27, 37, 57 mm (MV) - 27, 37, 57 mm (LV) | |||
| Shelf Life | up to 3 years | |||
