Begraft Peripheral + | SERVE TIP VE TEKNOLOJİ TİC. A.Ş.
This peripheral stent graft uniquely combines an extraordinary radial force with a remarkable flexibility.
Reliable sealing properties through unique sandwich design
Smooth lesion access through high flexibility
Strong performance in complex lesions through increased radial force
Reliable sealing properties through unique sandwich design
Smooth lesion access through high flexibility
Strong performance in complex lesions through increased radial force
Your Specification
| Graft Material | Two layers of micro-porous ePTFE tubing (203 ± 25 µm) |
| Stent Material (Composition) | CoCr (L605) |

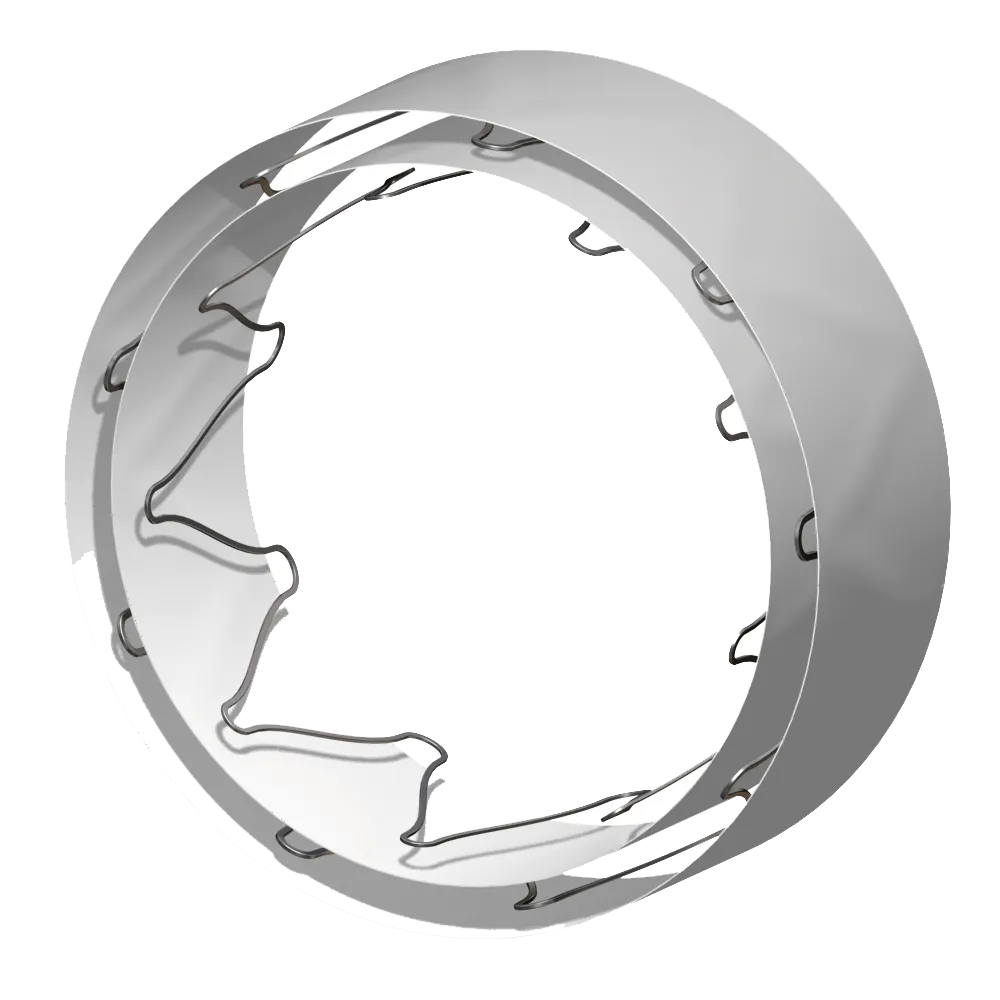

| Stent Graft Design | Double stent with an ePTFE tubing between the stents and on the outer stent |
| Strut Dimensions (Width x Thickness) | Inner Stent 0.145 x 0.115 mm (SV) 0.155 x 0.115 mm (MV) 0.145 x 0.115 mm (LV) Outer Stent 0.155 x 0.115 mm (SV) 0.145 x 0.115 mm (MV) 0.135 x 0.115 mm (LV) |
| Covered Stent Surface Area | OTW |
| Guide Catheter Compatibility | 7 F up to Ø 8 x 57 mm 8 F |
| Guide Wire | 0.035” |
| Shaft Size | 5 F |
| Balloon Marker Material | Platinum / Iridium |
| Nominal Pressure | 11 bar Ø 5 + 6 mm 9 bar Ø 7 + 8 mm 8 bar Ø 9 + 10 mm |
| Rated Burst Pressure | 13 bar Ø 5 + 6 mm 12 bar Ø 7 – 10 mm |
| Catheter Shaft Length | 120 cm |

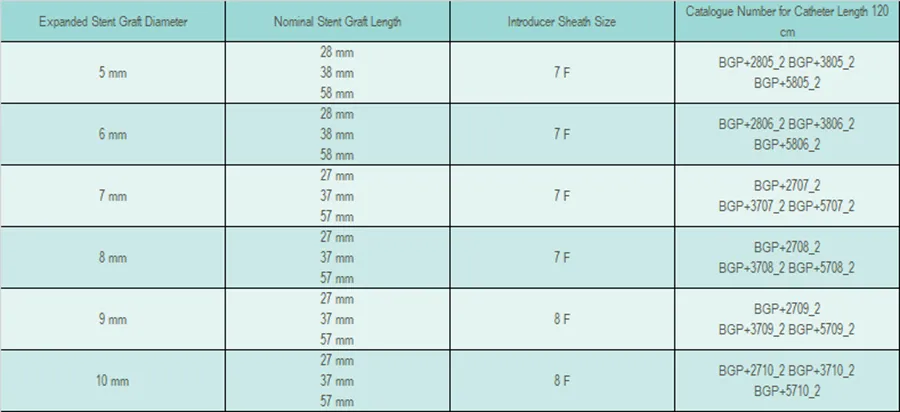

| Expanded Stent Graft Diameter | 5.0, 6.0 (SV) 7.0, 8.0 (MV) 9.0, 10.0 (LV) |
| Nominal Stent Graft Length | 28, 38, 58 mm (SV) 27, 37, 57 mm (MV) 27, 37, 57 mm (LV) |
| Shelf Life | Up to 3 years |
