BeSmooth Peripheral
BeSmooth Peripheral | SERVE TIP VE TEKNOLOJİ TİC. A.Ş.

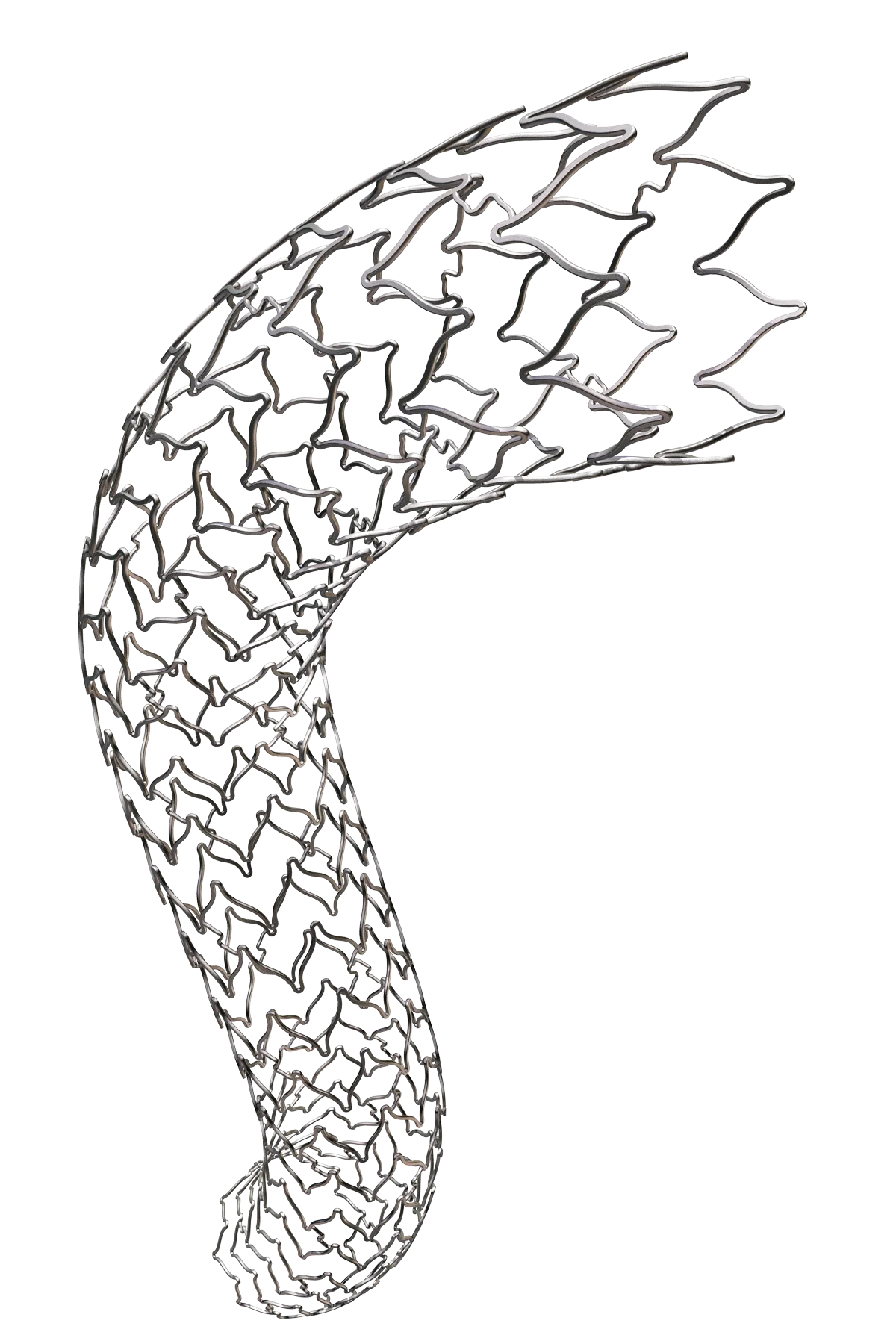

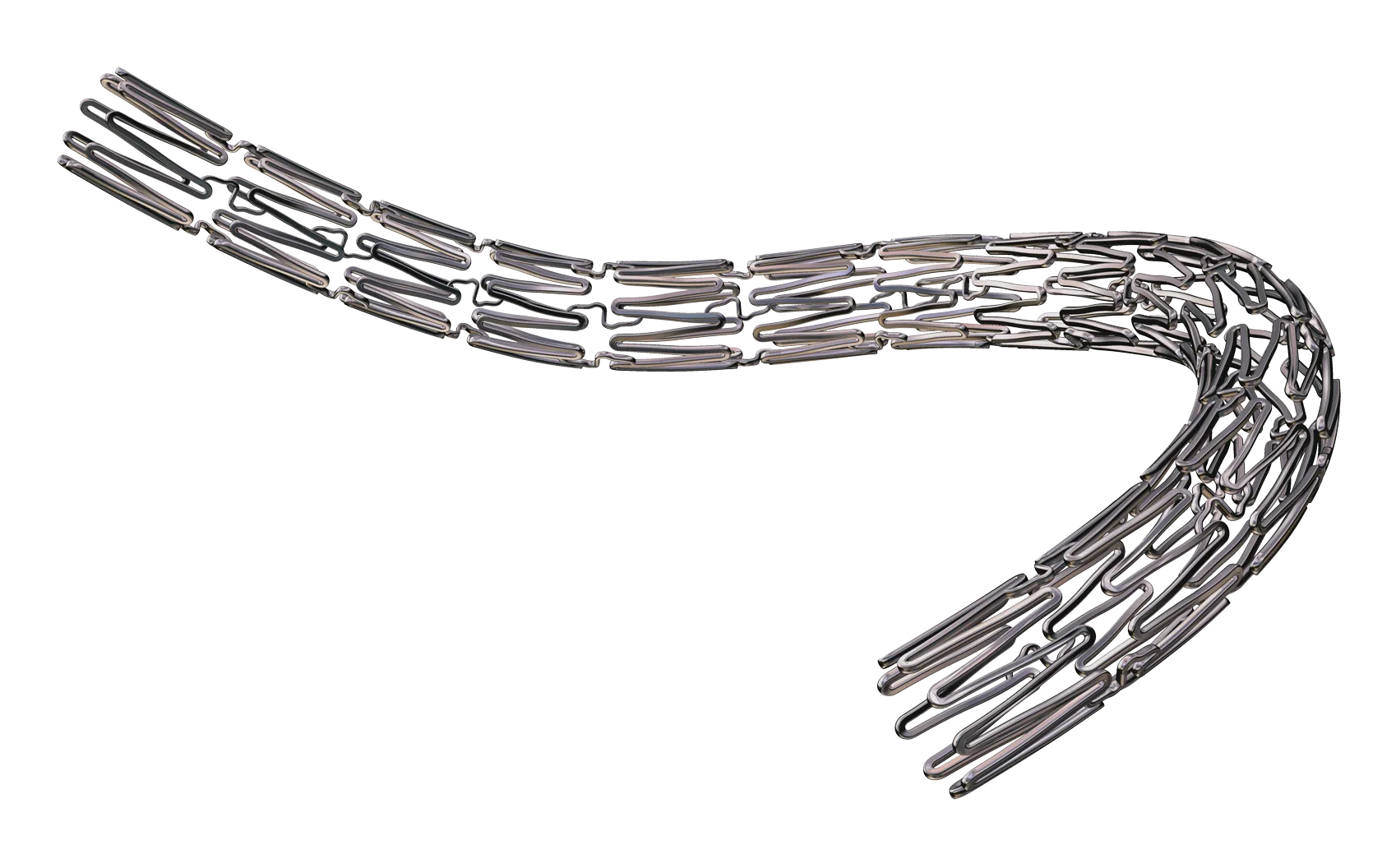

Peripheral Stent System
This peripheral stent system excels with a high radial force whilst maintaining extraordinary flexibility and low profile.
Less trauma, faster procedures
through low profile ( 6 F compatibility for all sizes )
10 mm
6F
Outstanding lesion access through exceptional flexibilty
High conformability & stability
through stent design & CoCr material with high radial force
Less trauma, faster procedures
through low profile ( 6 F compatibility for all sizes )
10 mm
6F
Outstanding lesion access through exceptional flexibilty
High conformability & stability
through stent design & CoCr material with high radial force

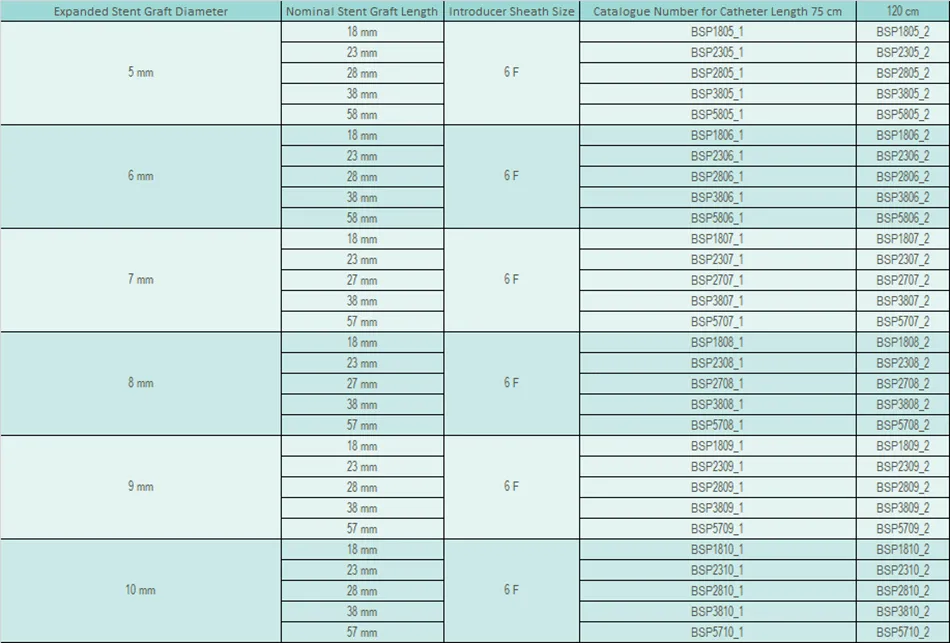

Your Specification
| Stent Material (Composition) | CoCr (L605) |
| Strut Dimensions (Width x Thickness) | 0.135 x 0.145 mm (SV) 0.145 x 0.145 mm (MV) 0.165 x 0.145 mm (LV) |
| Introducer Sheath Compatibility | 6 F |
| Guide Wire | 0.035” |
| Shaft Size | 5 F |
| Balloon Marker Material | Platinum / Iridium |
| Nominal Pressure | 10 bar Ø 5.0 - 6.0 mm 8 bar Ø 7.0 - 10.0 mm |
| Rated Burst Pressure | 13 bar Ø 5.0 - 6.0 mm 12 bar Ø 7.0 - 10.0 mm |
| Catheter Shaft Length | 75 and 120 cm |
| Expanded Stent Diameter | 5.0, 6.0 mm (SV) - 7.0, 8.0 mm (MV) - 9.0, 10.0 mm (LV) |
| Nominal Stent Length | 18, 23, 28, 38, 58 mm (SV) 18, 23, 27, 38, 57 mm (MV) 18, 23, 28, 38, 57 mm (LV) |
| Shelf Life | up to 3 years |
