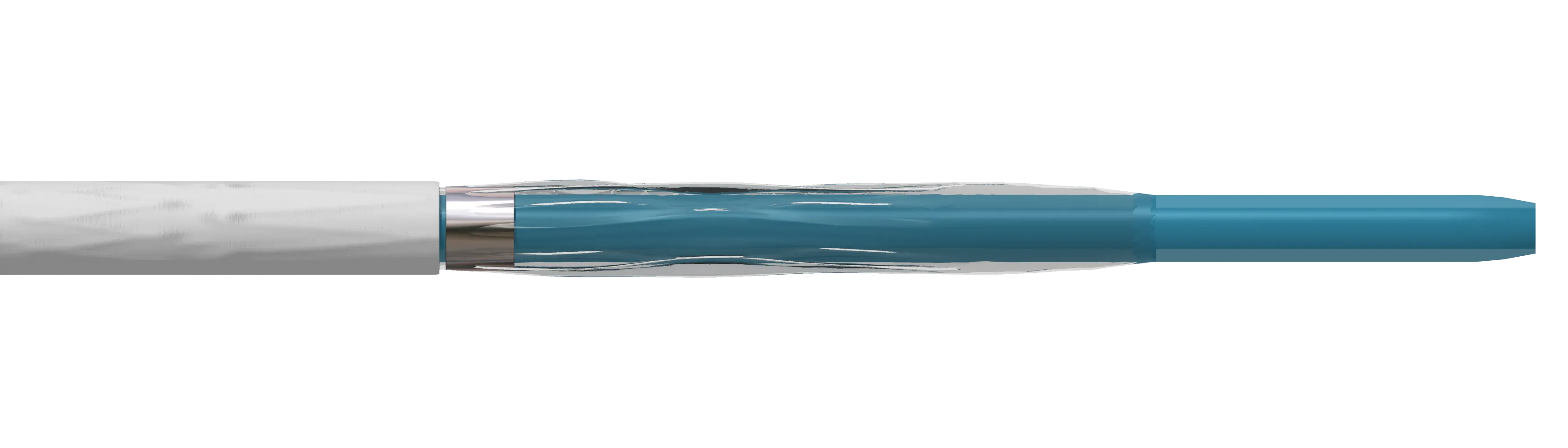

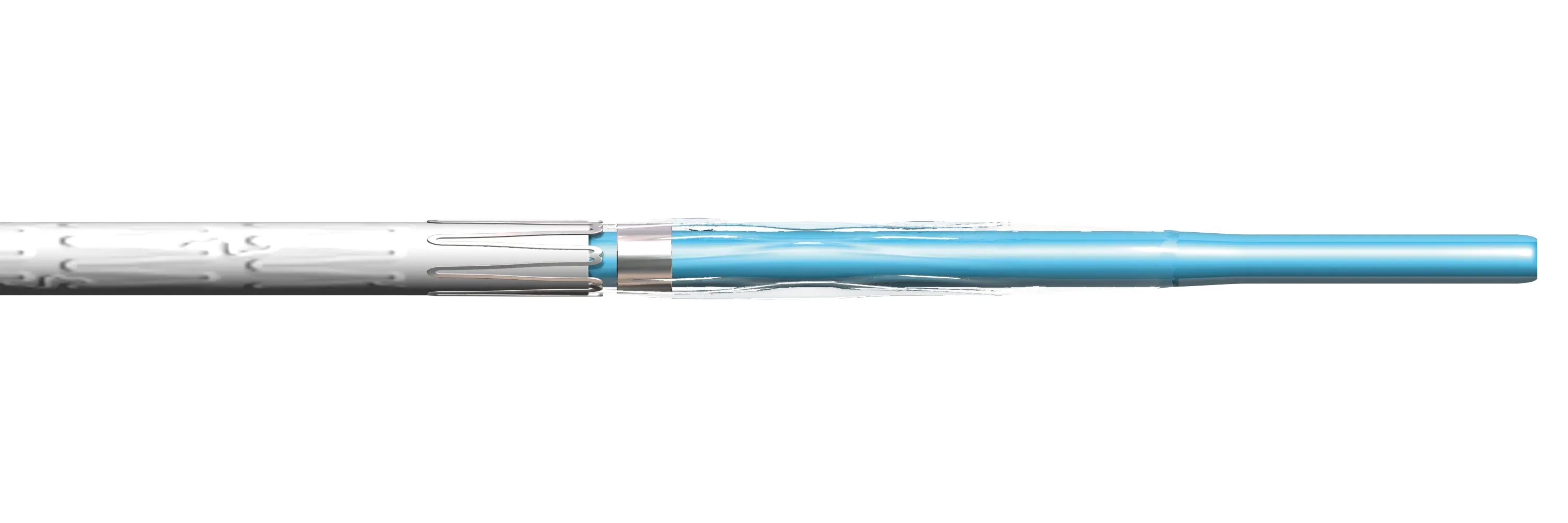

Coronary Stent Graft System
This extraordinary product combines a highly flexible one-layer stent graft with a low-profile balloon  catheter to offer an unrivaled small guiding catheter  compatibility. The cobalt-chrome stent platform is  covered with a micro-porous ePTFE membrane.

Less trauma, faster procedures
through low profile ( 5 F compatibility for all sizes )

5 mm
           5F

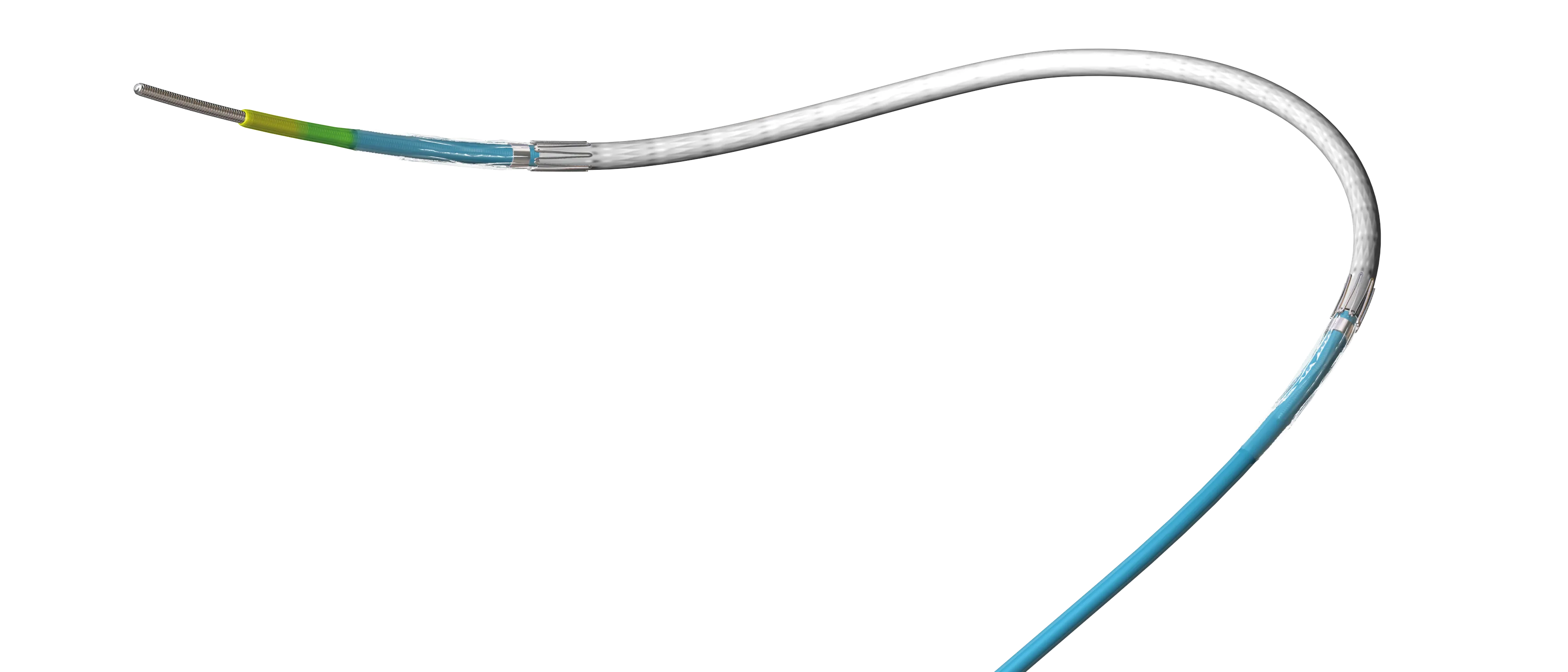

Outstanding lesion access through exceptional flexibilty






Cost effective through 3-years shelf life

Coronary Stent Graft System
Your Specification
Graft Material Micro-porous ePTFE tubing (89± 25µm)
Stent Material (Composition) CoCr (L605)
Stent Graft Design Single Stent
Strut Dimensions (Width x Thickness) 0.07 x 0.08 mm (SV) 0.08 x 0.09 mm (MV) 0.07 x 0.08 mm (LV)
Covered Stent Surface Area 100% (for all sizes)
Guide Catheter Compatibility 5F (for all sizes)
Guide Wire 0.014”
Shaft Size 2.7 F distal / 1.9 F proximal (Ø 2.5 - 4.0 mm) 3.2 F distal / 1.9 F proximal (Ø 4.5 - 5.0 mm)
Catheter Shaft Length 144 cm (Ø 2.5 - 4.0 mm) 154 cm (Ø 4.5 - 5.0 mm)
Balloon Marker Material Platinum / Iridium
Nominal Pressure 11 bar (Ø 2.5 - 4.0 mm) - 10 bar (Ø 4.5 - 5.0 mm)
Rated Burst Pressure 16 bar (Ø 2.5 - 4.0 mm) - 14 bar (Ø 4.5 - 5.0 mm)
Crimped Stent Graft Profile Ø 1.1 mm (Ø 2.5) - Ø 1.2 mm (Ø 3.0) - Ø 1.3 mm (Ø 4.0) - Ø 1.4 mm (Ø 5.0)

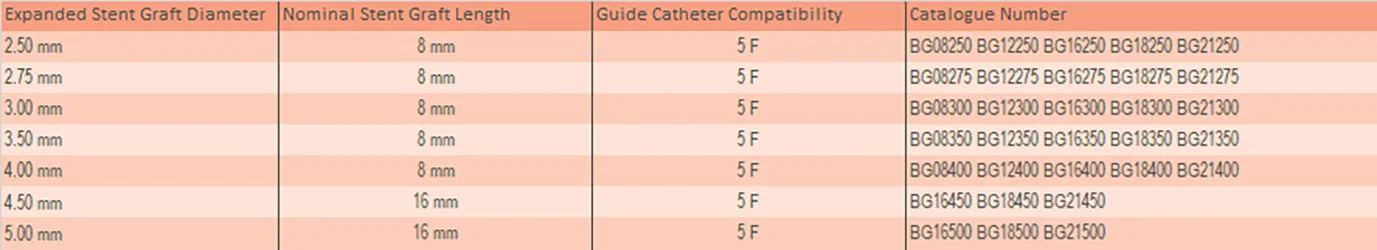

Expanded Stent Graft Diameter 2.50 mm (SV) - 2.75, 3.00, 3.50,  4.00 mm (MV) - 4.50, 5.00 mm (LV)
Nominal Stent Graft Length 8, 12, 16, 18, 21, 24 mm (SV) -  8, 12, 16, 18, 21, 24 mm (MV) - 16, 18, 21, 24 mm (LV)
Shelf Life Up to 3 years
Your Specification
Indications
The BeGraft Coronary Stent Graft System is indicated for transluminal implantation in coronary arteries or aorto-coronary bypass grafts for the treatment of:

1.    Acute perforation or rupture of coronary arteries.
2.   Aneurysm of coronary arteries or coronary bypass-vein graft.
